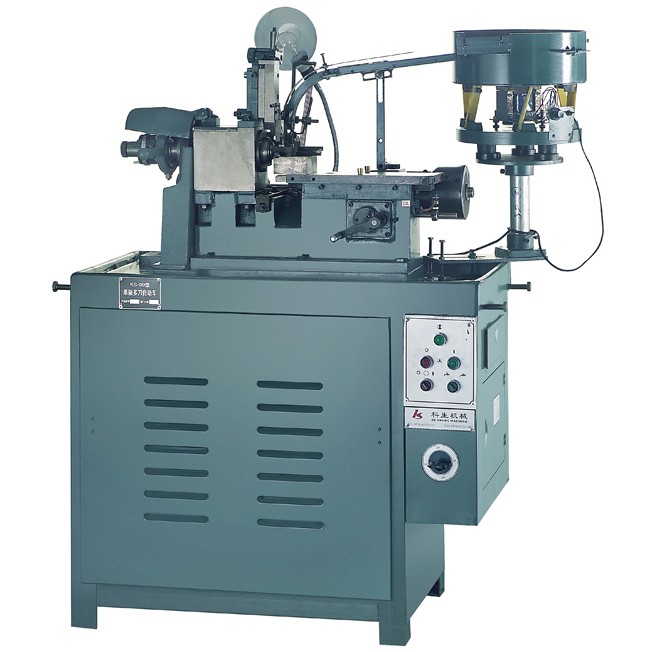

Automatic Instrument Lathe

The Automatic Instrument Lathe with higher carrying capacity and better stability, it can mass-produce various metal parts for instruments, electrical appliances, lamps and so on.

Model:KS19

Send Inquiry

Product Description

The Detailed Product Introduction of Automatic Instrument Lathe

The Automatic Instrument Lathe manufacturers is KS09 series lathe.It is based on KS09 type, the spindle bearing degree is high, good stability. Suitable for processing bearing rings below 25. Standard accessories can be turned, drilling, tapping, edge milling, groove milling, cutting, chamfering, long material processing and other complex processes of automatic processing.

The Parameter On Automatic Instrument Lathe

	Unit	Short Piece	Long Piece
Speed of spindle		1100-4500	1100-4000
Turning diameter	mm	φ1.5-37	φ2.0-16
Drilling diameter	mm	φ0.6-10	φ0.6-10
Turning length	mm	1.5-30	1.5-30
Max. length of blank	mm	1.0-60	3000
Processing efficiency	min.	4-50pcs	4-35pcs
Motor	kw	1.5	1.5
Overall dimensions(LWH)	mm	960X600X1400

Features On Automatic Instrument Lathe

-Higher Bearing Capacity & Better Stability
-Application: mass production of various metal parts (for instruments, electric appliances, computer connectors, telecommunication equipment connectors, lamps, lighters, pen-making, etc.).
-Upgraded Function: production for small bearing collars (<=25 Dia.)
